**FOR COMPACT MODELS USERS

PLEASE, NOTE THAT IF YOU WANT TO SET THE EMULATOR AS DRIVES 0/1 YOU MUST SET THE REAR INTERNAL FDD NO. SWITCH TO POSITION 2/3.

FOR X68030 AND TOWER/DESKTOP MODEL USERS

PLEASE, NOTE THAT IF YOU WANT TO SET THE EMULATOR AS DRIVES 0/1 YOU MUST OPEN YOUR X68000 AND UNPLUG THE RIBBON CABLES FROM THE INTERNAL FLOPPY DRIVES OR SET THEM AS UNIT 2/3 BY MOVING THEIR JUMPERS. **

FLIP-FLOP' is a standalone external floppy drive emulator for the Sharp X68000 (all models supported by the the use of proper adapter), a home computer created in 1987 by Sharp Corporation and sold only in Japan.

FLIP-FLOP' plugs to the external FDD connector on the back of X68000 (all models supported by the use of proper adapter).It emulates two floppy drives that can be set as 0/1 or 2/3 by moving the onboard switch.

'FLIP-FLOP' loads disk images (in .HFE and .HDM format) stored on a USB pen drive (2.0 or higher, NOT INCLUDED) and it's powered by a modified version of FlashFloppy firmware.'FLIP'FLOP' emulates some of the proprietary X68000 FDD signals meaning it can properly run all software.LED blinking and disk image auto-eject features are supported.

Technically speaking 'FLIP-FLOP' emulator consists of the following parts :

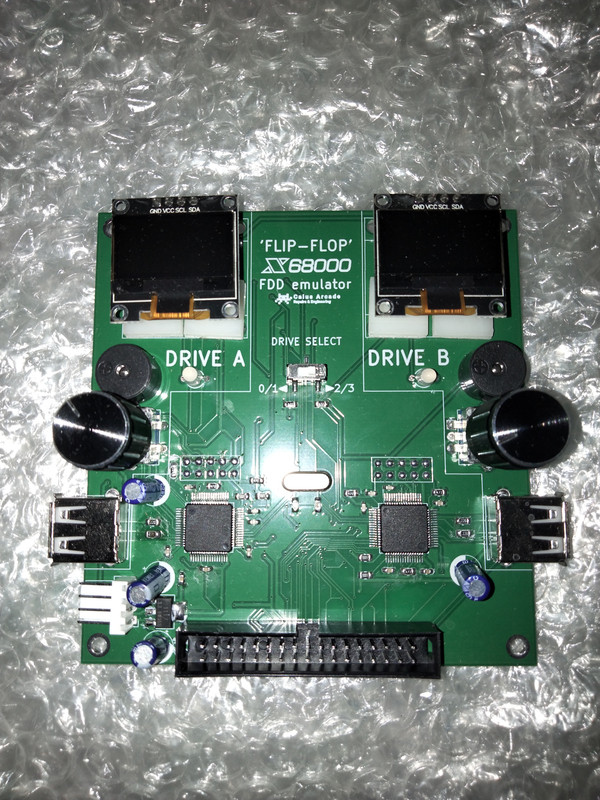

-The mainboard which embeds 0.96" OLEDs displays, the rotary encoders and USB connectors :

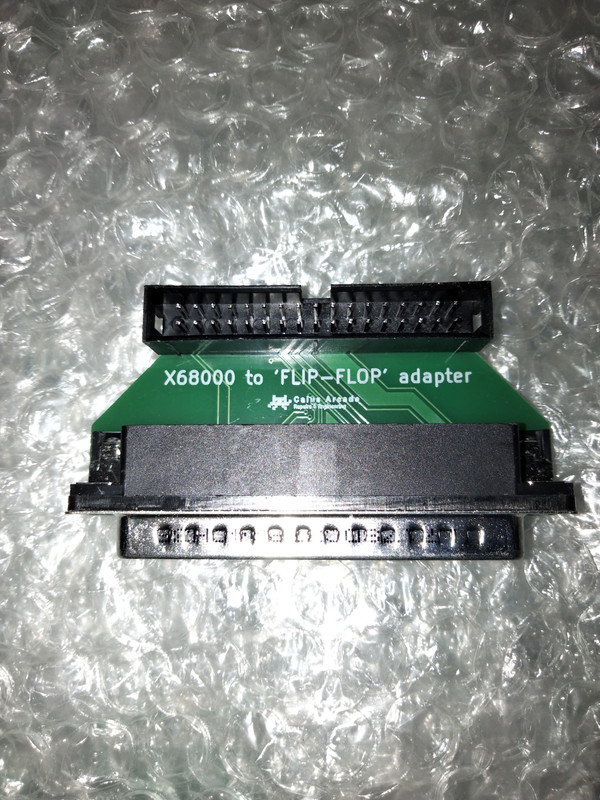

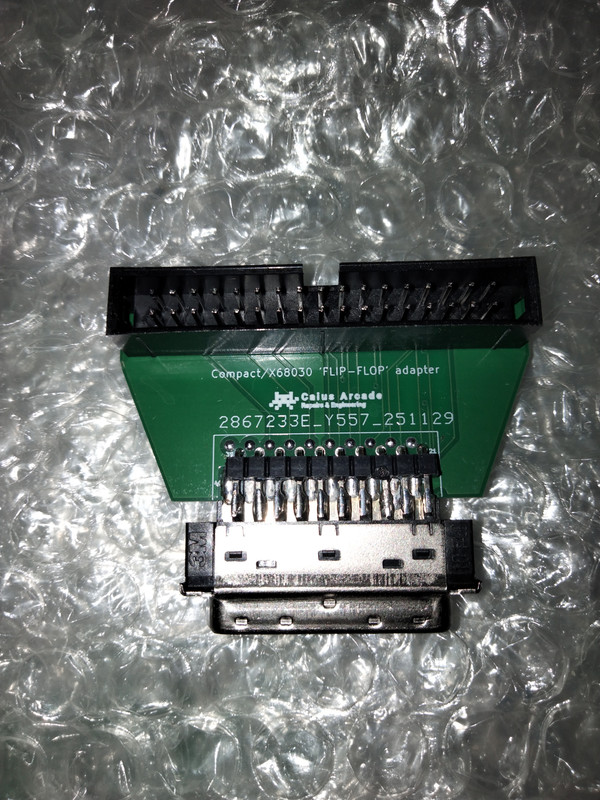

-Adapters to connect the emulator mainboard to the DB37 (on tower/desktop models) or MDR40 (on Compact/X68030 models) external FDD connector on the back of X68000 :

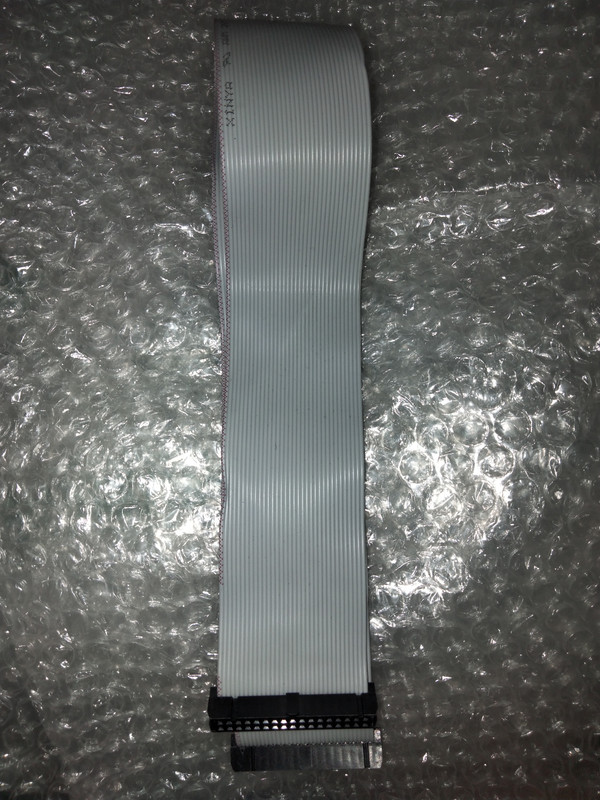

Ribbon cable to connect 'FLIP-FLOP' emulator thru the DB37 (on tower/desktop models) or MDR40 (on Compact/X68030 models) adapters :

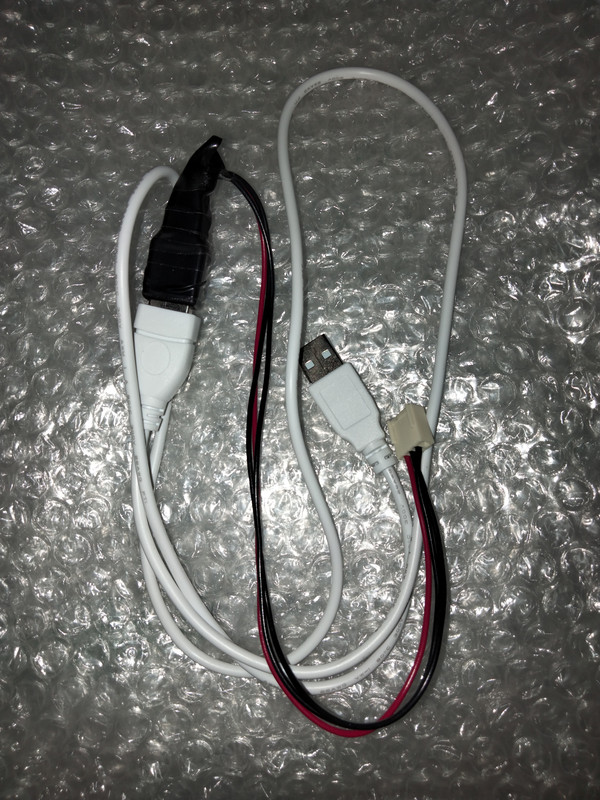

USB to floppy Berg cable to provide power to 'FLIP-FLOP' emulator thru a USB charger (CHARGER NOT INCLUDED) :

Shipping is tracked, you receive the tracking number.

- No insurance.

- Item ships within 7 business days.

- Delivery is usually done within 7-15 business days.
