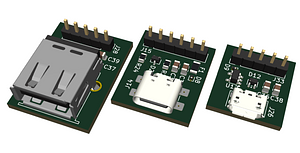

This USB-A Breakout Module features pin headers for VDD, GND, and the differential data pairs. The module is a USB-A receptacle with +5v VBUS and host-side hardware (this USB module provides power from your board, to the peripheral). The module features an AP2171W power switch for USB VBUS. The module features comprehensive ESD & overcurrent protections, including diodes on data pairs along with decoupling capacitors & the power switch.

This USB-C Breakout Module features pin headers for VDD, GND, and the differential data pairs. The module is hard wired with 5.1k CC resistors, configuring it as a 5v sink (This module receives 5v, it's used to power your board). The module features comprehensive ESD & current protections, including diodes on VBUS and data pairs, a polyfuse and a 10uF capacitor.

This kit takes out the tedious, unpredictable troubles that come from USBs, and will let you streamline and debug your inventions & innovations.

USB-C Datasheet: https://www.meridianelectronic.com/assets/datasheets/USB-C%20Datasheet.pdf

USB-A Datasheet: https://www.meridianelectronic.com/assets/datasheets/USB-A%20Datasheet.pdf
