This product was designed by Unexpected Maker.
By buying this product you support original hardware creators.

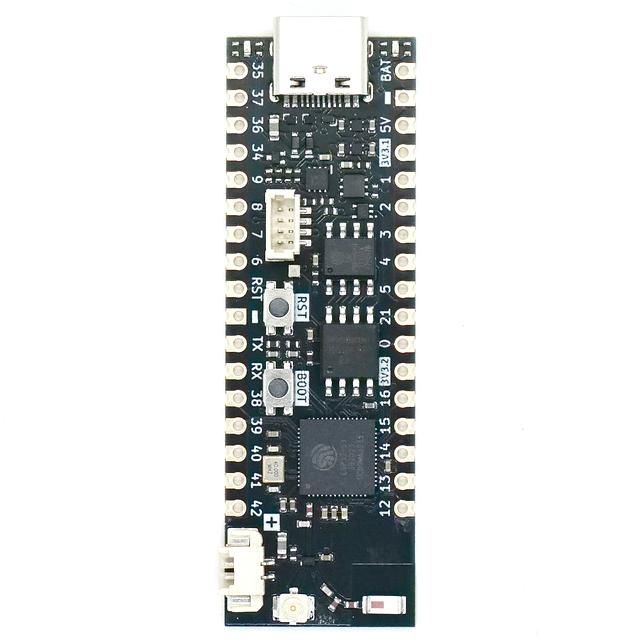

![Main product image for ProS3[D]](https://lectronz-images.b-cdn.net/lectronz/active_storage/representations/proxy/eyJfcmFpbHMiOnsiZGF0YSI6NzQwNzgsInB1ciI6ImJsb2JfaWQifX0=--c67e1d49ba89c7244c55bc2b67711a8b36820168/eyJfcmFpbHMiOnsiZGF0YSI6eyJmb3JtYXQiOiJwbmciLCJyZXNpemVfdG9fbGltaXQiOls5NjAsNjQwXSwic2F2ZXIiOnsic3RyaXAiOnRydWV9fSwicHVyIjoidmFyaWF0aW9uIn19--605f1da017bcbb03ce31845cd0e81d97e3b3c574/ProS3D.png)
![Product image 2 for ProS3[D]](https://lectronz-images.b-cdn.net/lectronz/active_storage/representations/proxy/eyJfcmFpbHMiOnsiZGF0YSI6NzQwODIsInB1ciI6ImJsb2JfaWQifX0=--b3b9f2a000fee002c613a77746b80873ea966164/eyJfcmFpbHMiOnsiZGF0YSI6eyJmb3JtYXQiOiJwbmciLCJyZXNpemVfdG9fbGltaXQiOls5NjAsNjQwXSwic2F2ZXIiOnsic3RyaXAiOnRydWV9fSwicHVyIjoidmFyaWF0aW9uIn19--605f1da017bcbb03ce31845cd0e81d97e3b3c574/ProS3D_pinoutLJ6bMO.png)
ProS3[D] is our NEW top-of-the-line Extremely Pro ESP32-S3 board!
![ProS3[D] features](https://unexpectedmaker.com/images/features/main_features_pros3d.webp)
Meet ProS3[D] - our Extremely Pro ESP32-S3 board!
ProS3[D] is the ProS3 you know, re-designed with the Series[D] upgrades: an onboard antenna and a u.FL connector on the same board, switchable from your code, an I²C fuel gauge for accurate battery monitoring & a new ultra low power 1010 Neopixel RGB LED. It keeps its USB ESD protection, castellated edges, 16 MB of flash and 8 MB of PSRAM.

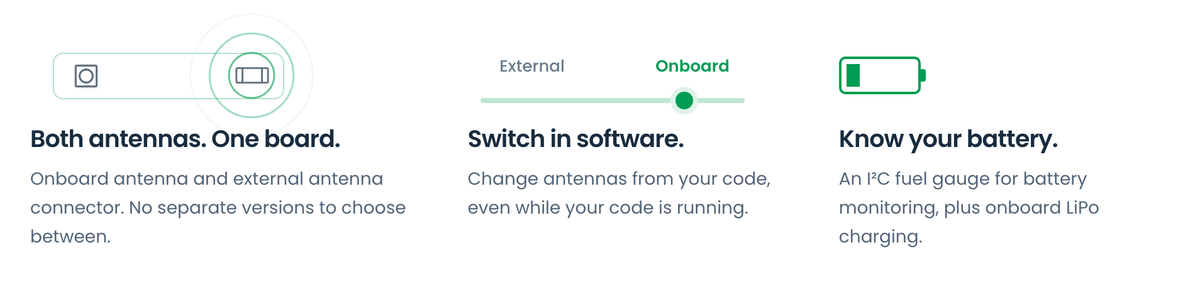

![Series[D] features: Both antennas. One board. · Switch in software. · Know your battery.](https://unexpectedmaker.com/images/product-content/series-d-features-pros3d.gif)
NOTE The onboard antenna is selected by default, so you never need to worry about the RF switch being in a bad state, or the ESP32-S3 getting damaged if you forget to plug in an external antenna.
Features & Specifications
| Processor | ESP32-S3 · 32-bit · Dual-core LX7 · up to 240 MHz |
| Flash | 16 MB QSPI |
| PSRAM | 8 MB QSPI |
| GPIO | 27 |
| Wireless | Wi-Fi 4 2.4 GHz · 802.11b/g/n · BLE 5 + Mesh |
| Coprocessor | RISC-V ultra-low-power core |
| USB | USB-C · USB Serial/JTAG and exposed JTAG pins |
| Protection | USB ESD protection · reverse USB back-feed protection |
| Power | 2 × 700 mA · 3.3 V regulators |
| Sleep | Ultra-low deep sleep current |
| Expansion | STEMMA QT connector powered by LDO1 |
| Battery | LiPo charging · MicroBlade connector · I²C battery fuel gauge |
| Sensing | 5V presence detection |
| Onboard | Low-power RGB LED · red power and orange charge LEDs |
| Antenna | 3D high-gain antenna and u.FL connector · software switching |
| Connection | Castellated headers |
| Format | TinyPICO, TinyS2 and TinyS3 compatible |
| Size | 55 × 17.8 mm |
| Thickness | 5.4 mm at the vertical STEMMA QT connector |
In the box
- Included: Colour pinout card · Unassembled male headers · JST-PH 2.0mm to Picoblade 1.25mm battery cable converter · Antistatic bag
- Optional: external 2.4GHz antenna
TinyS3[D] Compatible

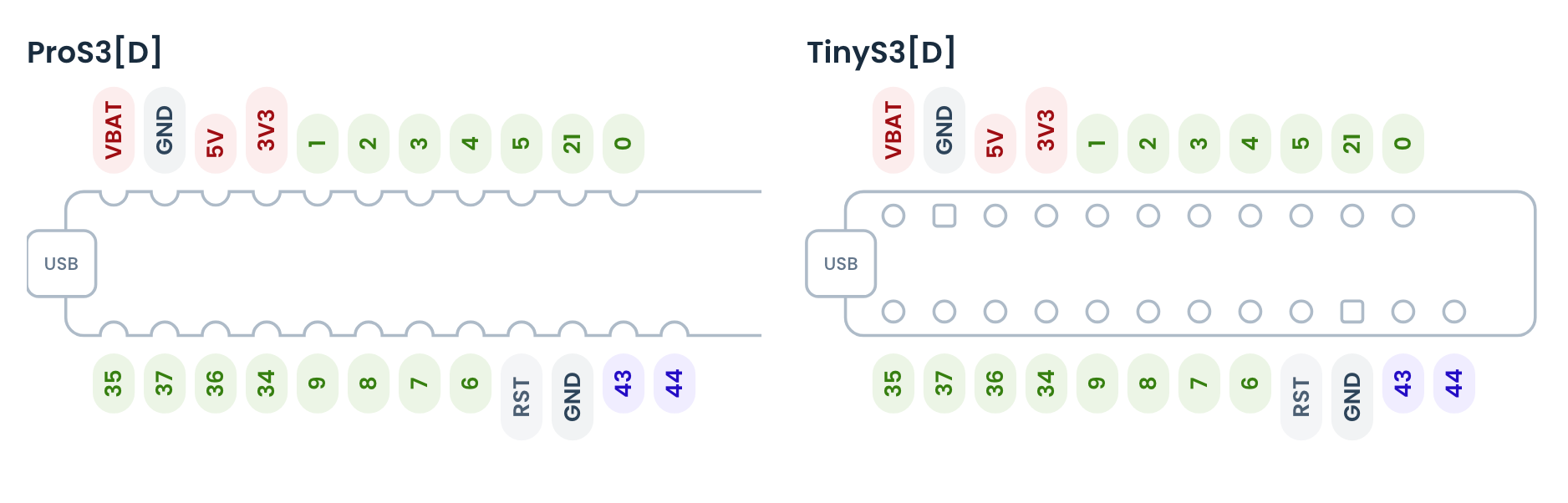

The first 11 pins on the top and 12 pins on the bottom from the USB connector end are the same IO numbers and peripheral functionality as the TinyS3[D], making the ProS3[D] compatible with all TinyPICO/TinyS3[D] shields.
![ProS3[D] compatibility](https://unexpectedmaker.com/images/product-content/compatibility-pros3d.png)
Getting Started Using Your ProS3[D]
Please have a read through our Getting Started Guide for information on how to start using your ProS3[D] Development Board.
Code any way you like!
Ships with CircuitPython pre-installed!
The ProS3[D] ships with the latest version of CircuitPython that supports the ESP32-S3. It also ships with the UF2 bootloader, so you can easily update your ProS3[D] with the latest CircuitPython firmware, whenever you desire.
Of course, you can choose from a wonderful array of other languages and platforms. Explore them all below....
Downloads
Download ProS3[D] resources, including the schematic, 3D model, KiCAD footprint and more.
GitHub
The Unexpected Maker Series[D] GitHub repository includes:
- 3D STEP file for ProS3[D]
- High-resolution pinout reference card for ProS3[D]
- Helper libraries for Arduino and CircuitPython shipping files
Links to code and documentation
Documentation (unexpectedmaker.com)
Product HS Code: 8542310070
Shipping policy
All products purchased from this store ship directly from me here in Melbourne, Australia. Orders are processed daily and usually go out within a few days! I'm currently unable to ship to Germany, Denmark, or Sweden, but I am doing my best to work with Australia Post and Zonos about this issue; sorry for any inconvenience. Finally, postage rates suck, and they keep going up; sorry :(
ProS3[D]
Sold by Unexpected Maker
$24.00
No tax for United States [change]
Stock available: 50
Volume discount | |
2+ items | $23.00 |
4+ items | $22.00 |
10+ items | $21.00 |
