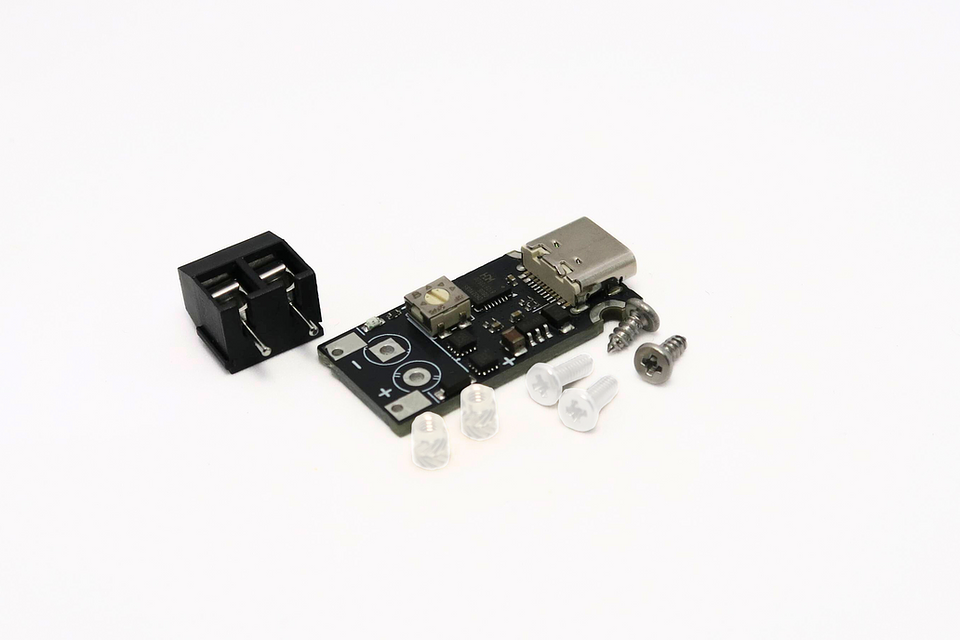

What is included

• 1x PPSTrigger V2.2
• 1x Screw terminal 5mm
• 2x Screw M2x6mm

Description

Have you ever want to drive a high power LED directly from your charger? With PPSTrigger, you can request even 5V@5A for your Pi or 4.2V @ 1A current limit for CC/CV charge curve!

Download: User Manual for PPSTriggerV2.2

Download: User Manual for PPSTriggerV2.0

Specification

USB-C Trigger for fixed PDOs, or PPS with Constant Voltage or Constant Current mode. The operating trigger range is 3.3V-21V @ 5A max.

Application

• Constant Current/Constant Voltage battery charger. Do not leave battery charge unattended.
• LED driver with constant current limit.

How to use the board

• Default (no jumper): CV mode. Max voltage is set by the potentiometer. Maximum current rated for cable/power supply.
• 1A jumper: CC mode at 1A. Max voltage is set by the potentiometer.
• 1.5A jumper: CC mode at 1.5A. Max voltage is set by the potentiometer.
• 2A jumper: CC mode at 2A. Max voltage is set by the potentiometer.
• 2.5A jumper: CC mode at 2.5A. Max voltage is set by the potentiometer.
• 3A jumper: CC mode at 3A. Max voltage is set by the potentiometer.
• 4A jumper: CC mode at 4A. Max voltage is set by the potentiometer.

When CC mode is selected through the jumper, if the power supply does not support PPS mode, there will be no power at the output. This is a sanity check for CC mode.

CC: Constant Current Mode

CV: Constant Voltage Mode

Important note

Most modern USB-C chargers support PPS. Through our small sample size that includes powerbank/charger from Anker, Ugreen, and Baseus, here is our recommendation for getting Constant Current mode out of the box:

• UGREEN 100W USB PD 3.0
• UGREEN 140W USB PD 3.1
• UGREEN 160W USB PD 3.1
• Anker 737 GaNPrime 120W
• Anker 737 PowerCore 24K

In CC (constant current) mode, only the PPS profile is activated, if there is no PPS profile, the output is turned off.

In CV (constant voltage) mode, the trigger board will try to utilize the PPS profile if it exists before using the standard fixed profile to provide the requested voltage from the potentiometer.

Dimension

Power Supply 3D Base

Download base STL file and order the voltmeter on Aliexpress

Case for PS2 Slim Adapter - Makerworld

Example application

Direct high wattage LED drive without series resistor
