Overview

This NFC + Audio + LEDs + SD Card development module is built around an ESP32-S3 microcontroller, featuring a PN5321 NFC reader, MAX98357 I²S amplifier, eight WS2812B addressable RGB LEDs, and a MicroSD card slot—ideal for creating synchronized audio-visual interactions, NFC-triggered behaviors, and local storage for audio or data.

Key Features

• Microcontroller & Connectivity
  Powered by the ESP32-S3 SoC, offering Wi-Fi, Bluetooth LE, and sufficient computational capacity for real-time audio decoding, LED effects, NFC operations, and SD card access.

• NFC Reader
  Utilizes PN5321 to support ISO/IEC 14443 A/B tags, peer-to-peer NFC, and emulation modes. Compatible with MIFARE Classic/Ultralight/DESFire, Innovision Jewel, FeliCa, and NTAG215 card types.

• Audio Output
  MAX98357 amplifier delivers up to 3 W audio to the included speaker via I²S with excellent clarity.

• RGB LED Effects
  Eight WS2812B LEDs allow full RGB control per pixel—perfect for status indicators, sound-sync lighting, animations, and more.

• SD Card Interface
  Onboard MicroSD card slot (supports up to 32 GB) for local storage of audio files, logs, or configuration data.

• Modular Design

  • Main board integrates ESP32-S3, PN532, MAX98357, LEDs, and SD card slot

  • External NFC antenna board with connector for optimal placement

  • 3 W speaker for high-quality audio output

  • NTAG215 NFC card included

Package Contents

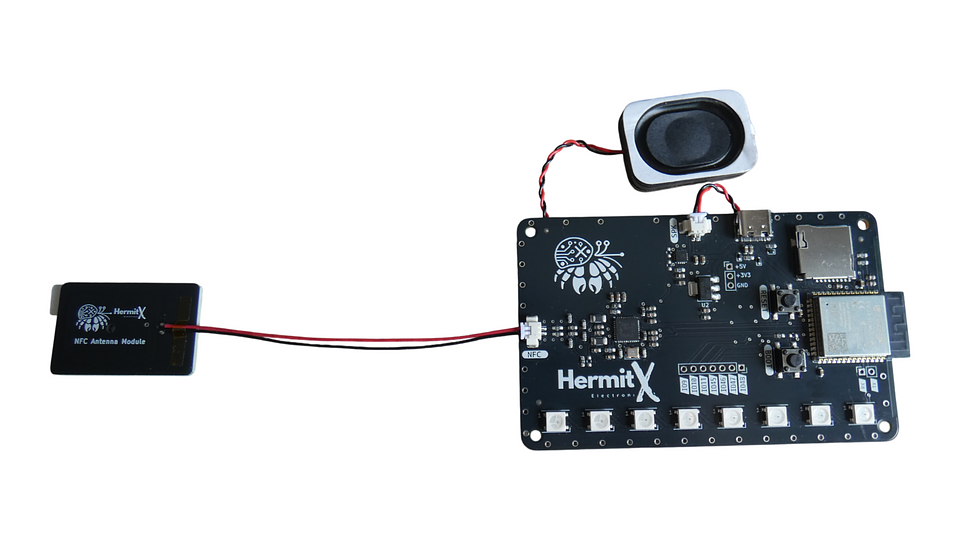

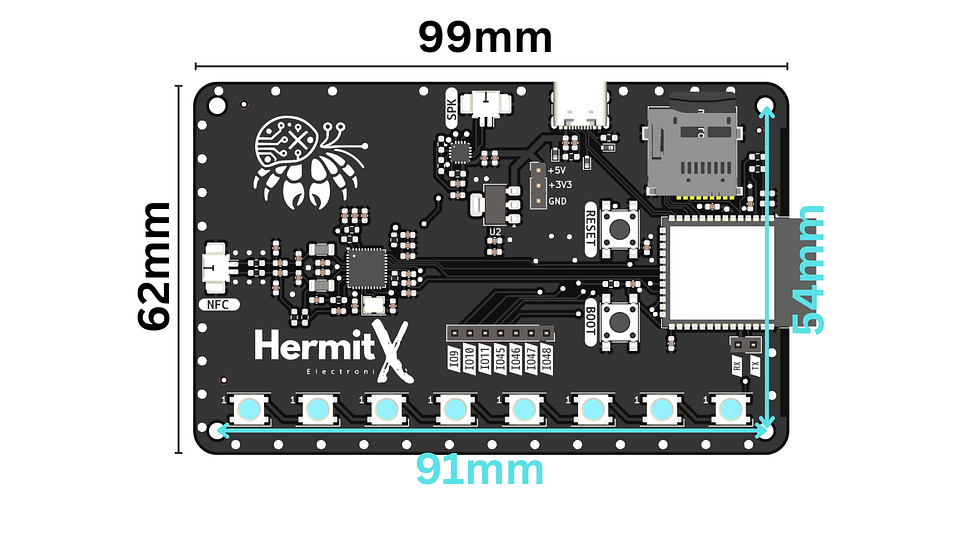

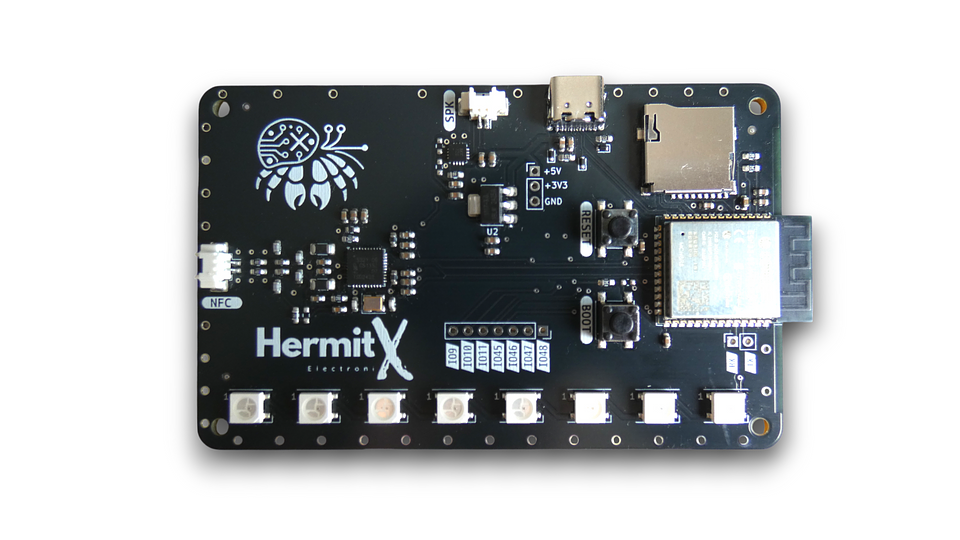

• Main module PCB (ESP32-S3 + PN532 + MAX98357 + 8 × WS2812B LEDs + MicroSD slot)
• External NFC antenna PCB with cable connector
• 3 W speaker
• NTAG215 NFC card

Specifications

NFC Capabilities

The PN5321 supports multiple operating modes at 13.56 MHz:

• ISO/IEC 14443A/MIFARE Reader/Writer: MIFARE Classic (1K/4K), MIFARE Ultralight, NTAG series, DESFire.

• FeliCa Reader/Writer: Sony FeliCa cards.

• ISO/IEC 14443B Reader/Writer: Type B tags.

• ISO/IEC 14443A/MIFARE Card Emulation: Emulate MIFARE Classic 1K or 4K cards.

• FeliCa Card Emulation: Emulate FeliCa cards.

• ISO/IEC 18092 (ECMA-340) Peer-to-Peer: NFC peer-to-peer communication.

Emulation and peer-to-peer modes enable advanced use cases such as virtual card creation and direct device-to-device exchanges.

ESP32-S3 Integration

Refer to the Pinout and Internal Connections section for detailed GPIO mappings.

• Use Cases

  • NFC-triggered audio playback, LED animations, and Wi-Fi/BLE interactions.

  • Access control systems with visual/audio feedback.

  • Interactive installations, smart kiosks, educational projects.

• Software & Code Examples
  Leverage frameworks such as Arduino, ESP-IDF, MicroPython, and ESPHome. PN532 libraries are widely available for these environments.

Quick Start

1. Power
   Supply power via USB-C or 5 V through the onboard connector.

2. Example Loaded
   On startup, the example firmware is ready to read NFC tags and perform the following behavior:

   • LEDs: Continuous "chase" effect on the 8 WS2812B LEDs.

   • On Tag Detect: Play success.mp3 from the MicroSD card (SD card not included) and flash the LEDs in green.
