Description

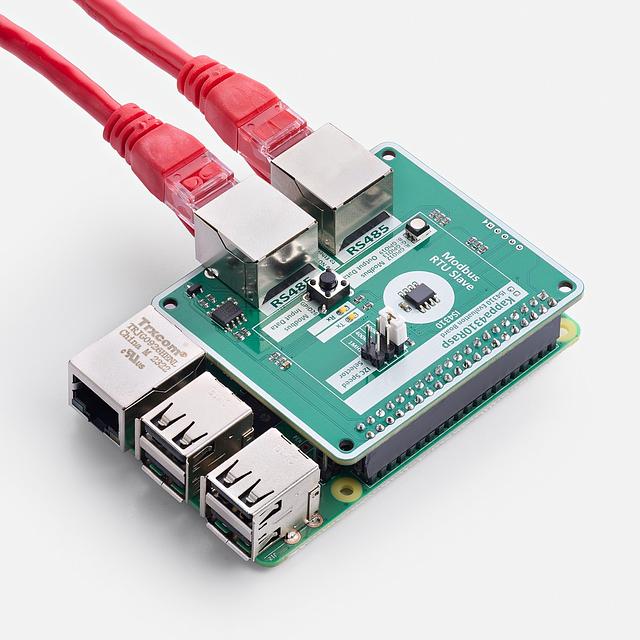

The Kappa4310Rasp is an evaluation board for the IS4310 Modbus RTU Slave chip. It enables engineers to easily evaluate the IS4310 without the need for soldering or developing their own prototype, offering a ready-to-use solution. The board features an RGB LED and a push-button to simulate an actuator and a sensor.

Designed as a shield with the Raspberry Pi form factor, the Kappa4310Rasp benefits from its widespread popularity, ensuring compatibility with various single board computers (SBCs), including Asus Tinker Board, Orange Pi, Rock Pi, Banana Pi, among others. The board features an RS485 electrical interface and includes two daisy-chained RJ45 connectors for seamless integration.

The IS4310 is an ideal solution for ensuring Modbus protocol timing constraints regarding to the T1.5 and T3.5 protocol specifications, reducing CPU load, and eliminating the need for dedicated pins. It includes 500 Holding Registers for engineers to use and supports Function Codes 3 (0x03), 6 (0x06), and 16 (0x10).

Examples and Documentation

This Evaluation Board (Kappa4310Rasp)

• 📄 User Manual
• 🧩 Module Schematic

Modbus Chip (IS4310) used in this Evaluation Board

• 📄 Datasheet
• 📘 Online Wiki

• 📎 Product Flyer


Firmware Example Projects

• 👉 IS4310 Modbus with Python for Raspberry Pi

Others

• Download Modbus RTU Master Software for Windows: qModMaster

Buy the IS4310 Modbus RTU Slave Stack Chip

🛒 You can buy the IS4310 Modbus RTU Slave Chip at LECTRONZ

Questions?

💬 Contact us anytime for support.
