This product was designed by Unexpected Maker.
By buying this product you support original hardware creators.

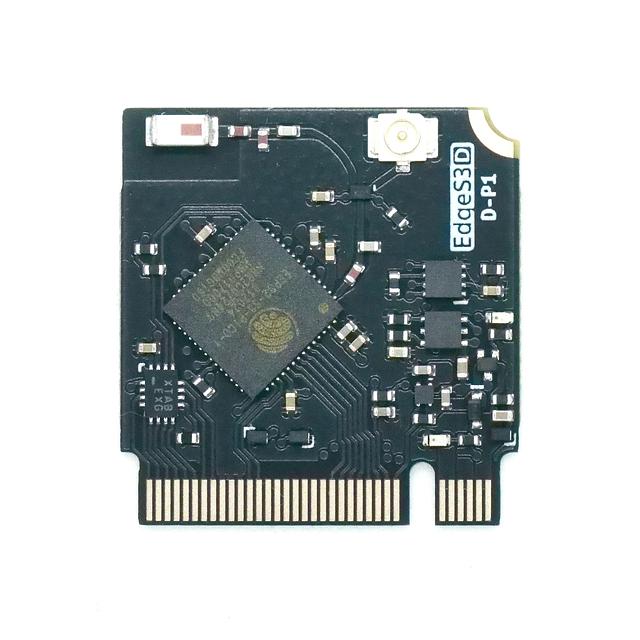

![Main product image for EdgeS3[D]](https://lectronz-images.b-cdn.net/lectronz/active_storage/representations/proxy/eyJfcmFpbHMiOnsiZGF0YSI6NzM4MTcsInB1ciI6ImJsb2JfaWQifX0=--2b72873e4d11d26d2447d016a6f8967d2d878383/eyJfcmFpbHMiOnsiZGF0YSI6eyJmb3JtYXQiOiJwbmciLCJyZXNpemVfdG9fbGltaXQiOls5NjAsNjQwXSwic2F2ZXIiOnsic3RyaXAiOnRydWV9fSwicHVyIjoidmFyaWF0aW9uIn19--605f1da017bcbb03ce31845cd0e81d97e3b3c574/EdgeS3D.png)
EdgeS3[D] is our brand new REUSABLE development board/module.
![EdgeS3[D] features](https://unexpectedmaker.com/images/features/main_features_edges3d.webp)
Meet EdgeS3[D]
EdgeS3[D] is a complete ESP32-S3 development board on a removable M.2 B-Key module. Plug it into a carrier PCB, pull it out and reuse it in your next project. It has an onboard antenna and a u.FL connector, switchable from your code, an I²C fuel gauge for battery monitoring, and eight extra IO from its onboard expander.

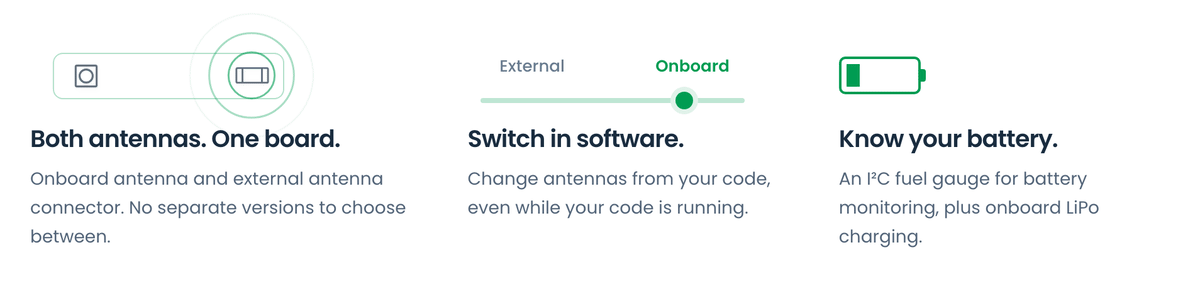

![Series[D] features: Both antennas. One board. · Switch in software. · Know your battery.](https://unexpectedmaker.com/images/product-content/series-d-features-edges3d.gif)
NOTE The onboard antenna is selected by default, so you never need to worry about the RF switch being in a bad state, or the ESP32-S3 getting damaged if you forget to plug in an external antenna.
Features & Specifications
| Processor | ESP32-S3-PICO · 32-bit · Dual-core LX7 · up to 240 MHz |
| Flash | 8 MB QSPI |
| PSRAM | 2 MB QSPI |
| GPIO | 29 |
| Wireless | Wi-Fi 4 2.4 GHz · 802.11b/g/n · BLE 5 + Mesh |
| Coprocessor | RISC-V ultra-low-power coprocessor |
| Expansion | 8 additional GPIO through the onboard IO expander |
| USB | Native USB + USB Serial/JTAG through the carrier |
| Power | 700 mA · 3.3 V regulator |
| Sleep | Ultra-low deep sleep current |
| Battery | LiPo charging · I²C battery fuel gauge |
| Antenna | 3D high-gain antenna and u.FL connector · software switching |
| Connection | M.2 B-Key edge connector |
| Size | 22 × 23 mm |
| Thickness | 2 mm at u.FL connector |
In the box
- Included: Colour pinout card · Antistatic bag
- Optional: M.2 B-Key connector · external 2.4GHz antenna
Note: EdgeS3[D] is only available in a 2MB QSPI PSRAM version right now. There may be an 8MB OPI PSRAM version later, depending on silicon availability.
Which B-Key M.2 Connector will I get?

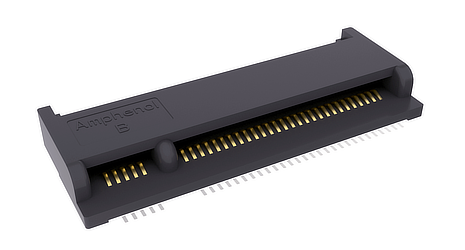

The M.2 connector I use on the EdgeS3[D] Carrier PCB, and that I ship here is the Amphenol MDT275B03001, which is a side entry B-Key connector that is 2.75mm in height, and has the EdgeS3[D] sitting 1mm off the PCB.
Available at Mouser and other online distributors.
Note: EdgeS3[D] is not compatible with a M.2 slot in your computer. Please don't attempt to insert it "just to see".
Compare the modules.
EdgeS3[D], OMGS3, NanoS3 and TinyPICO Nano specifications
| EdgeS3[D] | OMGS3 | NanoS3 | TinyPICO Nano | |
|---|---|---|---|---|
| MCU | ESP32-S3-PICO | ESP32-S3-PICO | ESP32-S3FN8 | ESP32-PICO-D4 |
| Processor | Dual-core LX7 · up to 240 MHz | Dual-core LX7 · up to 240 MHz | Dual-core LX7 · up to 240 MHz | Dual-core LX6 · up to 240 MHz |
| Flash | 8 MB | 8 MB | 8 MB | 4 MB |
| PSRAM | 2 MB | 2 MB | 8 MB | 4 MB |
| Available IO | 29 + 8 | 17 | 27 | 27 |
| 2.4 GHz Wi-Fi | Wi-Fi 4 | Wi-Fi 4 | Wi-Fi 4 | Wi-Fi 4 |
| Bluetooth | BLE 5 + Mesh | BLE 5 + Mesh | BLE 5 + Mesh | Classic BT + BLE 4.2 |
| Zigbee / Thread | — | — | — | — |
| Format / connection | M.2 B-Key module | Surface-mount module | Surface-mount module | Surface-mount module |
| USB | Via carrier · USB OTG / JTAG | Via carrier · USB OTG / Serial / JTAG | Via carrier · USB OTG / Serial / JTAG | Via carrier · USB-to-serial |
| 3.3 V regulators | 1 × 700 mA | 1 × 700 mA | 1 × 700 mA | 1 × 700 mA |
| STEMMA QT | — | — | — | — |
| RGB LED | — | NeoPixel | NeoPixel | — |
| Antenna | Onboard + u.FL · software switch | Onboard | Onboard | Onboard |
| Battery | I²C fuel gauge + LiPo charging | I²C fuel gauge + LiPo charging | LiPo charging | LiPo charging |
| Size | 22 × 23 mm | 25 × 10 mm | 28 × 12.7 mm | 27 × 13 mm |
Getting Started Using Your EdgeS3[D]
Please have a read through our Getting Started Guide for information on how to start using your EdgeS3[D] Development Board.
Code any way you like!
Ships with CircuitPython pre-installed!
The EdgeS3[D] ships with the latest version of CircuitPython that supports the ESP32-S3. It also ships with the UF2 bootloader, so you can easily update your EdgeS3[D] with the latest CircuitPython firmware, whenever you desire.
Of course, you can choose from a wonderful array of other languages and platforms. Explore them all below....
Downloads
Download EdgeS3[D] resources, including the schematic, 3D model, KiCAD footprint and more.
GitHub
The Unexpected Maker Series[D] GitHub repository includes:
- 3D STEP files for EdgeS3[D] and its carrier
- High-resolution pinout reference card for EdgeS3[D]
- Helper libraries for Arduino and CircuitPython shipping files
Certification
EdgeS3[D] ships uncertified. If you use an EdgeS3[D] on a project that requires certification, you’ll be required to also certify the WiFi and Bluetooth radios as part of your final product.
Links to code and documentation
Documentation (unexpectedmaker.com)
Product HS Code: 8542310070
